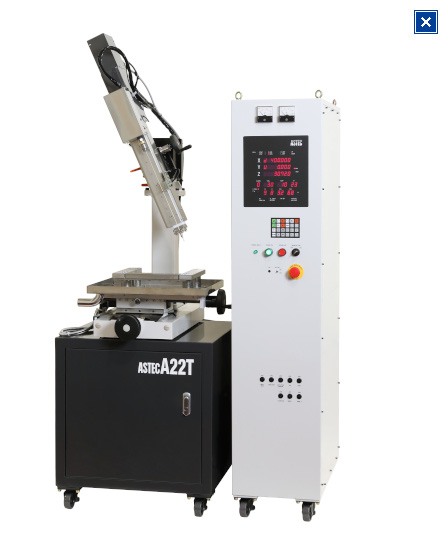

Because the head can be tilted by ±60°, slanted holes can be machined without tilting the work.
It is easy for anybody to operate this machine, providing excellent cost performance.
| name | A22T |
|---|---|
| Body dimensions (width × depth × height) | 620×628×1978mm |

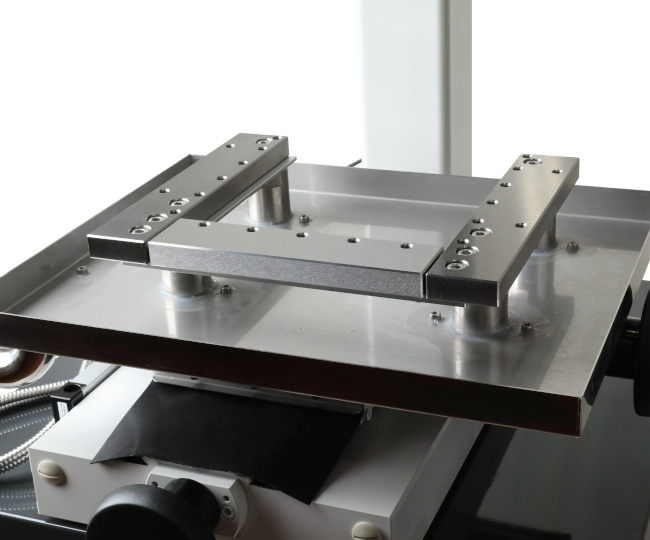

| Work Table (width × depth) | 260×314mm |
| Work Tank (width × depth) | 368×463mm |
| Table Travel (X-axis × Y-axis) | 200×200mm |
| Work maximun loading weight | 100kgf |
| Work maximum height | 225mm |
| W axis Head Travel | 300mm |
| B axis head tilt angle | ±60° |
| Z axis Servo Travel | 400mm |
| Diameter of the electrodes | φ0.2～3.0mm |
